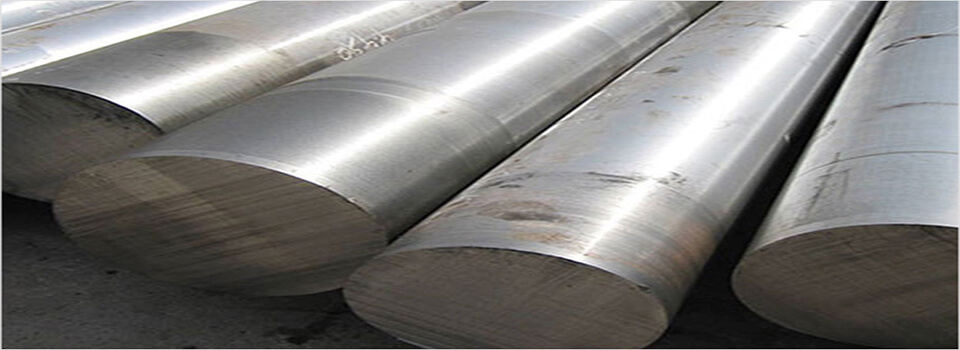

Super Duplex 2507 Round Bar

Super Duplex 2507 Round Bar Manufacturers, Super Duplex 2507 Round Bar Exporters, Super Duplex 2507 Round Bar Suppliers, Super Duplex 2507 Round Bar Importers , Super Duplex 2507 Round Bar Stockists

Super Duplex 2507 Round Bar Manufacturers in Mumbai, Super Duplex 2507 Round Bar Exporters in Mumbai , Super Duplex 2507 Round Bar Suppliers in Mumbai, Super Duplex 2507 Round Bar Importers in Mumbai , Super Duplex 2507 Round Bar Stockists in Mumbai

Super Duplex 2507 Round Bar Manufacturers in India, Super Duplex 2507 Round Bar Exporters in India, Super Duplex 2507 Round Bar Suppliers in India, Super Duplex 2507 Round Bar Importers in India , Super Duplex 2507 Round Bar Stockists in India

Super Duplex Steel 2507 Bar, ASTM A276 Super Duplex S32750 Round Bars, Super Duplex Steel UNS S32760 Bright Bar, Super Duplex S32750 Rods Suppliers and Dealer in Mumbai, India, Super Duplex Stainless Steel S32760 Round Bar, Suppliers of ASTM A276 Super Duplex Steel S32950 round Bar, 2507 Duplex Forged Bars Exporter, Super Duplex S32760 round Bar, Super Duplex S32750 Hexagonal Bar,Super Duplex Stainless Steel WERKSTOFF NR. 1.4410 Round Bars Manufacturer in India.

Duplex 2507 is an exceptionally duplex treated steel proposed for applications which solicitation phenomenal quality and utilization restriction. Composite 2507 has 25% chromium, 4% molybdenum, and 7% nickel. This high molybdenum, chromium and nitrogen substance achieves splendid security from chloride setting and gap utilization attack and the duplex structure outfits 2507 with exceptional assurance from chloride stress disintegration parting.

Utilization of Duplex 2507 should be obliged to applications underneath 600° F (316° C). Extended raised temperature introduction can diminish both the sturdiness and utilization deterrent of composite 2507.

Duplex 2507 has sensational mechanical properties. Consistently a light proportion of 2507 material can be used to achieve a comparative arrangement nature of a thicker nickel composite. The consequent save assets in weight can fundamentally decrease the general cost of creation.

UNS S32750, for the most part known as Super Duplex 2507®, is in a general sense equivalent to UNS S31803 Duplex. The differentiation between the two is the substance of chromium and nitrogen are higher in the Super Duplex Grade which hence makes higher disintegration resistance similarly as an increasingly drawn out future. Duplex is made out of between 24% to 26% chromium, 6% to 8% nickel, 3% molybdenum, and 1.2% manganese, with the equality being iron. Similarly found in Super Duplex are pursue proportions of carbon, phosphorus, sulfur, silicon, nitrogen, and copper.

Favorable circumstances include: extraordinary weldability and handiness, a critical degree of warm conductivity and low coefficient of warm expansion, high assurance from utilization, exhaustion, high security from setting and gap disintegration, high insurance from stress utilization parting (especially chloride stress utilization breaking), high imperativeness ingestion, high caliber, and deterioration. Essentially, the Duplex mixes are an exchange off; having a bit of the ferritic stress disintegration parting deterrent and a critical piece of the transcendent formability of the customary austenitic perfect amalgams, more cost satisfactorily than the high nickel composites.

SuperDuplex 2507 Round Bar Specification

Specifications : ASTM A276, ASME SA276
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size
: 6 mm to 120 mm.
Diameter
: 6mm to 350mm Diameter
Thickness : 100 to 6000 mm Length
Tolerance
: +/-0.2mm
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc.

SuperDuplex 2507 Round Bar Chemical Compositions

Cr Ni Mo C N Mn Si Cu P S Fe
24.0-26.0 6.0-8.0 3.0-5.0 0.030 Max .24-.32 1.20 Max 0.80 Max 0.50 Max 0.035 Max 0.020 Max Balance

SuperDuplex 2507 Round Bar Physical Properties

Interval
Temper
°C
Thermal
expansion
ax10M-bK-1
°C

Resistivity

(μ_ cm)
Thermal
conductivity
(W.m-1.K-1)
Specific
heat
(J.kg-1.K-1
Young
modulus
E
(GPa)
Shear
modulus
G
(GPa)
20-100 13 20 80 17 450 200 75
20-100 13 100 92 18 500 190 73
20-200 13.5 200 100 19 530 180 70
20-300 14 300 105 20 560 170 67

SuperDuplex S32750 Round Bar Mechanical Properties

Element Value
0.2% Offset Yield Strength, ksi 80 min.
Ultimate Tensile Strength, ksi 116 min.
1% Offset Yield Strength, ksi 91 min.
Elongation in 2 inches, % 15 min.
Hardness, Rockwell C 32 max
Impact Energy, ft-lbs 74 min.

SuperDuplex 2507 Round Bar Applications

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceutical
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry
