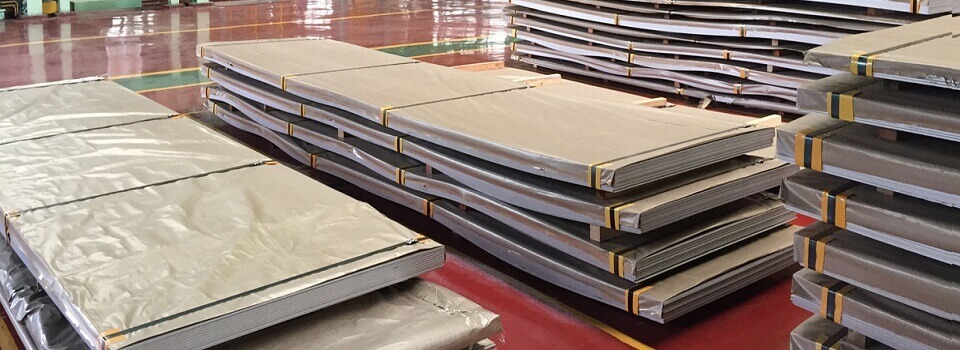

The Stainless Steel 347/347H Sheets and Plates are usually used for making of equipment used in affirmed separating square conditions. The set steel 347 is austenitic in nature and it contains chromium steel which is suitable for the fruition of intergranular use. This evaluation of SS plate and sheet is used in high temperature and weight conditions and is used in various mechanical applications. It is made by using top quality foul material and satisfies distinctive rule affiliations benchmarks. It is dealt with by the specific need of the customers. This SS sheet and plates are successfully welded and can be set by warmth treatment and just by the tainting working methodology.
The Stainless Steel 347/347H Sheets and Plates keeps running with ASTM/ASME A240/UNS S34700/S34709/DIN: 1.4550 models. The thickness of SS plates is between 0.3 mm to 120mm and has measure 1000 x 2000 and is revamped. This SS sheet is given arranged surface covering and has painted by dull and decline shading. We structure tempered steel plate by using configuration setting progress to satisfy client's need.
you can get Stainless Steel 347/347H Sheets and Plates thing from Padmavati Steel & Engg.Co., as they are creator and supplier of this thing wherever all through the world. They sold treated steel sheet material in mass at reasonable rates. They painstakingly acquainted with SS plated to various test to ensure its quality and give you choice SS things. This treated steel material is squeezed by using fascinating progress to avoid any kind of shrewdness condition.
Standard : ASTM / ASME A240 / SA240
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness :0.01 mm to 250 mmThk
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN |
SS 347 | 1.4550 | S34700 | SUS 347 | 08Ch18N12B | X6CrNiNb18-10 |
SS 347H | 1.4961 | S34709 | SUS 347H | - | X6CrNiNb18-12 |
Element | SS 347 | SS 347H |
C | 0.08 max | 0.04 – 0.10 |
Mn | 2.0 max | 2.0 max |
Si | 1.0 max | 1.0 max |
P | 0.045 max | 0.045 max |
S | 0.030 max | 0.030 max |
Cr | 17 – 20 | 17 – 19 |
Ni | 9 – 13 | 9 – 13 |
Cb | 10xC – 1.10 | 8xC – 1.10 |
Fe | 62.74 min | 63.72 min |
Element | SS 347-347H |
Density | 8.0 g/cm3 |
Melting Point | 1454 °C (2650 °F) |
Tensile Strength | Psi – 75000 , MPa – 515 |
Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
Elongation | 35 % |
